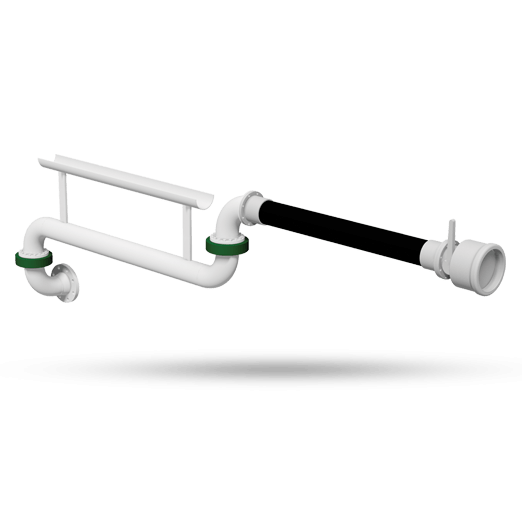

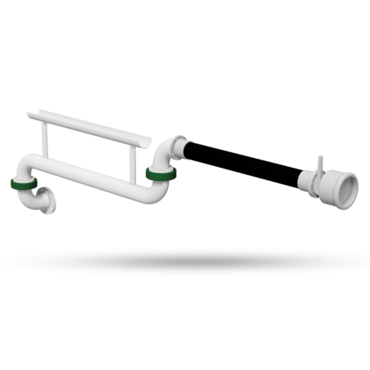

Bottom Transfer Hose Loader (BT-44)

Bottom Transfer Arm

 BT-44 bottom loading or unloading arms are low-profile economical choice for bulk offloading and require no overhead structure for support. Typically mounted very low to the ground, the primary arm and boom sections extend out into the loading area like an accordion. Grounder Hose Loading Arm (BT-44) are used when storage space is laterally available and no upper structure is available for support.

Available Up Feed and Horizontal Feed Loading configurations.

Bottom Transfer Hose Loader Accessories

Bottom Transfer Hose Loader Applications

  • The low mounting arrangement works very well with single product loading and unloading applications where vertical piping and support structures are not available.
  • Common applications include single product loading and unloading such as crude oil and crude condensate.

Benefits & Specifications for Grounder Hose Loading Arm

  • Simple to use/install.
  • Standard two coat heavy duty paint application for longevity.
  • Sizes available in 3” and 4”
  • Materials available in carbon steel, low temp carbon steel, aluminum and stainless steel.
