Stainless Steel Swivel Joints & Carbon Swivel Joints

As a manufacturer of high-quality loading arm systems and accessories, Excel Loading provides the XL-1.0 swivel joint engineered to achieve two goals: high durability and ease of maintenance. It is manufactured using domestic materials to attain unparalleled quality and safety standards in the industry. The XL-1.0 is the preferred choice for swivels.

Swivel Joints Design & Durability

The XL-1.0 exceeds the highest standards in the oil, gas, food, and chemical industries. Our precision machining and finishing ensure that it can achieve the extreme pressure needed to seal nearly all media. Specially hardened ball races enhance longevity and ease of maintenance, as well as allow the swivel to maneuver easily under any number of mechanical and hydraulic loads.

Swivel Joints Performance & Maintenance

We have designed the XL-1.0 swivel joint with parts that both improve performance and permit ease of upkeep. The precision tolerances and corrosion-resistant seal faces promote a tight seal and low maintenance.

Our split flange design allows for minimal interference. Welding isn't required to replace swivels in line. Seals are accessible without removing ball bearings. Our commitment and ability to ship both whole swivels or individual components results in ultimate flexibility and minimizes downtime.

Swivel Joint Specifications:

  • Temperature: -20°F - 400°F (other temperatures upon request)
  • Working Pressure: 300 PSI
  • Flanges: Carbon Steel, Low-Temperature Carbon Steel, Stainless Steel, Hastelloy, Inconel - (Others upon request)
  • Bearing Module: Carbon Steel, Stainless Steel
  • Standard Seals: Viton GFLT, Buna, FEP (Teflon Encapsulated Viton) – many other seals available upon request.
Swivel Joints

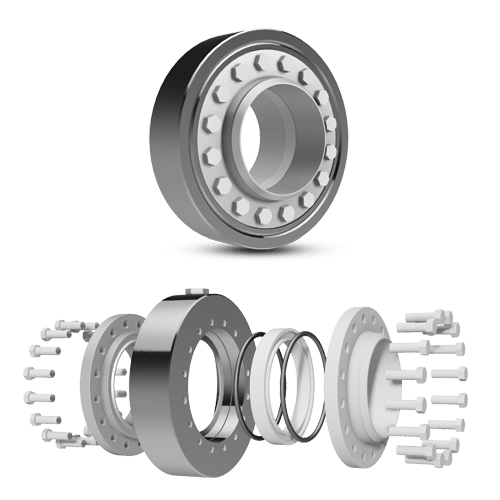

Swivel Joints Parts List

1 1 Body
2 1 Insert
3 2 Swivel Flange
4 1 Ball Plug
5 45 Ball Bearing
6 2 Bolt, Grade 5
7 1 Bearing O-Ring, Outer
8 1 Bearing O-Ring, Inner
9 1 Ball Plug O-Ring
10 1 Seal Block
11 2 Seal Block O-Ring

Other Models:

100% Domestic

100% Domestic

All Standard Swivels, Elbows, Pipes, and Spring components are made in the USA

Fastest Delivery

Fastest Delivery

4 week average delivery time with the ability to expedite for rush jobs



Material Test Reports and the ability to conform to AML

Quality Service

Quality Service

In-field services, shop rebuilds, and replacement parts available
